Bellows couplings - Lightweight, low inertia, ideal for high rpm applications

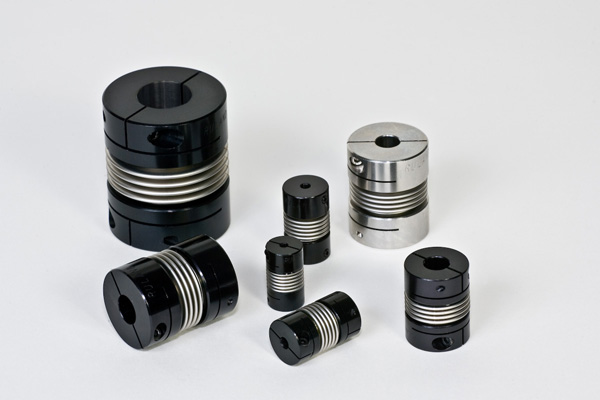

Bellows couplings from Ruland in different sizes.
Marlborough, Massachusetts, USA, January 2010. Ruland Manufacturing Co., Inc. offers bellows couplings for highly accurate performance in motion control applications.
Bellows couplings combine stainless steel bellows and aluminium hubs. The combination of aluminium hubs with the bellows results in an extremely lightweight, low inertia coupling. An important feature of the bellows coupling is a balanced design to reduce vibration in high rpm applications of up to 10,000 rpm.
The bellows are made of stainless steel, which makes them ideal for transmitting torque. Due to the bellows' uniform thin walls, the coupling is able to flex easily while remaining rigid under torsional loads, and provides low bearing loads that remain constant at all points of rotation. Parallel misalignment, angular misalignment and axial motion are accommodated by these couplings. Zero backlash and a long, maintenance-free life are assured since bellows couplings have no moving parts. These features collectively make bellows couplings an excellent choice in high end servo, stepper, encoder or positioning applications.
Ruland bellows couplings are offered in six sizes with set screw or Nomar clamp style hubs and straight or step bores ranging from 3mm to 25mm in the metric series and 1/8" to 1" in the inch series. All fasteners are metric. Stainless steel hubs, keyways, and other custom features are available by special order.
Bellows couplings are part of Ruland's complete product line which also includes clamp style and quick clamping shaft collars and rigid couplings with precision honed bores, and five types of zero-backlash motion control couplings including beam couplings, oldham couplings, jaw couplings and miniature disc couplings.
Summary bellows couplings:
Max Speed: 10,000 rpm
Good misalignment capabilities
Excellent torsional rigidity and torque capacity
No vibration dampening
Very low inertia
Direct link to product:
www.ruland.com/ps_couplings_bellows.asp
Company Information:
Ruland Manufacturing Co., Inc. was established in 1937 and has made a variety of precision products including the valve that pressurized the spacesuit of the first American to walk in space. Ruland's focus for the past 40 years has been on high performing shaft collars and couplings. The complete line of products includes shaft collars and rigid couplings, and a full line of motion control couplings: beam couplings, bellows couplings, oldham couplings, miniature disc couplings and zero backlash jaw couplings.
